Introducing RVTOL
A hybrid rocket-quadcopter that ascends at rocket speeds, transitions mid-air, and delivers controlled vertical landing anywhere — no runways, no infrastructure required.
V1.0 · Built & Tested · UC BerkeleyHow It Works
RVTOL merges the speed and range of a rocket with the landing precision of a quadcopter through a single mechanical mid-air transition — no runway required at either end.
Drone arms fold flush inside a sleek aerodynamic body. A solid-propellant engine launches the vehicle vertically at speed, covering range fast.
At apogee, a linear actuator-driven hinge linkage pivots all four motor arms outward, transforming the vehicle from rocket into quadcopter in seconds.
ArduPilot flight software takes over. The pilot or onboard system guides the vehicle through controlled descent and precision vertical landing at the exact delivery point.
A spring-loaded, servo-actuated parachute provides a redundant recovery mechanism, ensuring safe return of the vehicle in any failure scenario.
Rocket ascent · Mid-air transition · Drone landing
Use Cases
RVTOL's unique combination of range, speed, and infrastructure-free VTOL landing opens up applications that no existing system can serve.
Rapid delivery of medicine, vaccines, blood products, and emergency supplies to communities cut off by mountains, floods, or a simple lack of roads. RVTOL launches from a central hub, flies over impassable terrain, and lands precisely at the delivery point — no receiving infrastructure needed on either end. In time-critical scenarios like hemorrhage or snakebite, minutes matter.
Deploy sensor payloads rapidly to hard-to-reach areas for environmental monitoring, disaster assessment, or border surveillance without any ground infrastructure.
Launch a camera payload quickly to survey terrain, infrastructure, or disaster zones. Transition to drone mode for stable hovering and high-resolution imaging over the target area.
Collect atmospheric, thermal, or acoustic data at altitude or in remote terrain. Rapid deployment enables time-sensitive measurements for climate research or hazard monitoring.
Reach stranded individuals in mountainous or jungle terrain with emergency supplies, communication devices, or visual guidance while larger rescue teams mobilize.
Rapidly deploy to inspect pipelines, transmission lines, or remote structures — covering large distances in the rocket stage and hovering precisely in the drone stage.
For scenarios requiring exact placement — whether scientific instruments, communication relays, or aid packages — RVTOL's drone landing stage enables centimeter-level accuracy.
Any mission that needs speed, range, and a precise landing — without infrastructure.
The Problem
The places that need fast, reliable delivery most are precisely the places where the infrastructure required by current solutions doesn't exist.
Once launched, a conventional rocket is unguided. No control over altitude, no precision landing, no reusability. Massive infrastructure — launch pads, tracking systems, recovery teams — is needed for even basic operations.
Efficient in cruise, but fundamentally limited. Fixed-wing UAVs like Zipline top out at ~50 miles range and 65 mph, require slingshot launchers, dedicated landing infrastructure, and can only parachute-drop payloads — not land precisely. No runway, no mission.
Great for precision landing, but severely range-limited. Even the best commercial drones struggle beyond 10–15 miles on a charge, making them useless for reaching truly remote communities. They're slow to cover distance and can't penetrate high-altitude terrain.
Head to Head
| Capability | RVTOL | Fixed Wing / Drone Alternatives |
|---|---|---|
| Launch Infrastructure | ✓None required | ✗Dedicated hub, launcher, or runway |
| Vertical Takeoff | ✓Rocket-powered | ✗Slingshot or runway required (fixed-wing) |
| Precision Landing | ✓Controlled VTOL drone landing | ✗Parachute drop only (fixed-wing); range-limited (quadcopter) |
| Speed & Range | ✓Rocket ascent, extending effective range | ✗~50 mi max (fixed-wing); ~10–15 mi (quadcopter) |
| Works Without Roads or Runways | ✓Fully infrastructure-free | ✗Requires ground support at one or both ends |
| Reusable | ✓Full vehicle recovered & reflown | Partial — drone stages recoverable, but limited repeat ops in field |
Technology
Version 1.0 has been designed, manufactured, and flight-tested. The drone stage flies stably, vertical landing has been demonstrated, and the fold mechanism has been proven under load. V1.1 is actively in development, targeting expanded range and structural upgrades.
V1.0 demonstrated 0.7 mi range with vertical landing. V1.1 introduces metal load-bearing components, upgraded flight computer, and higher-capacity battery. Future versions target multi-mile operational range.

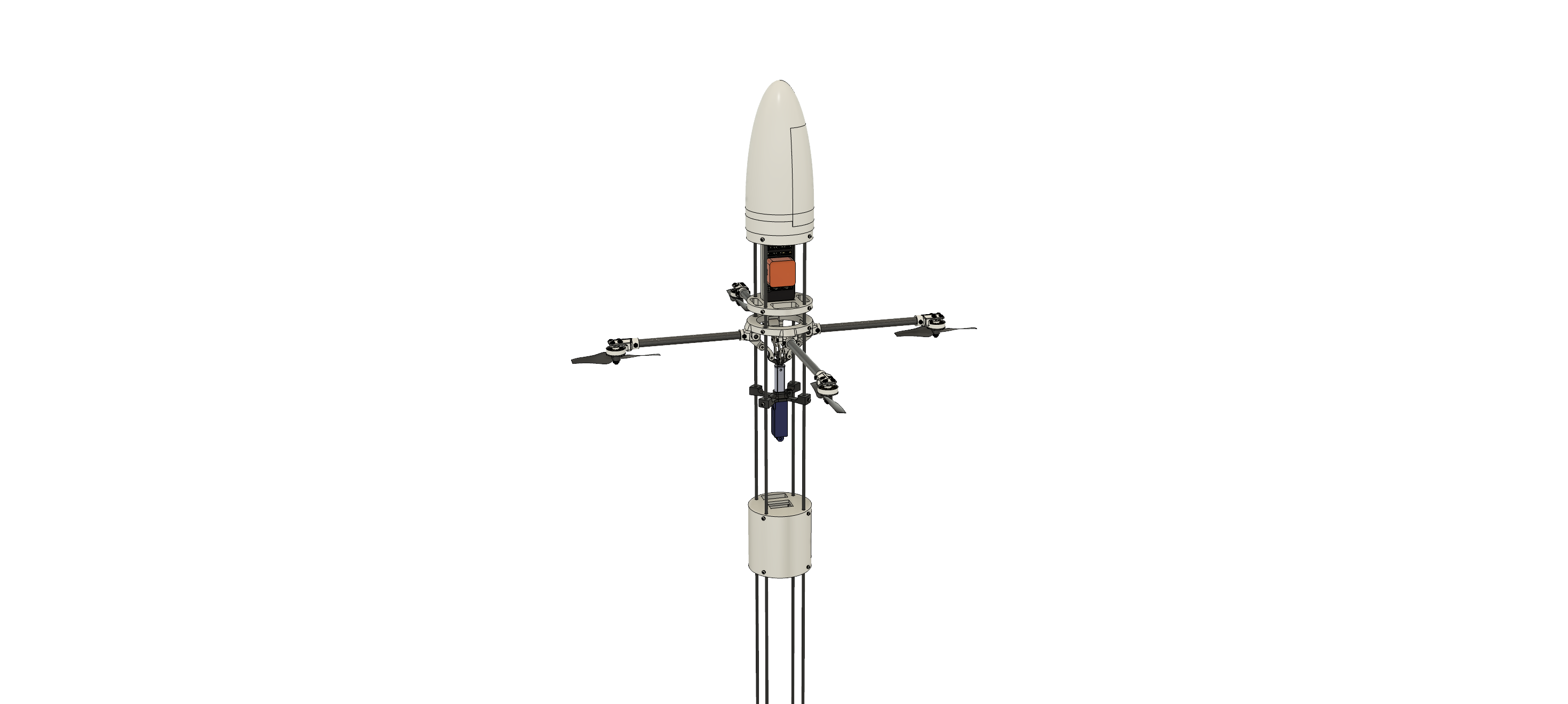

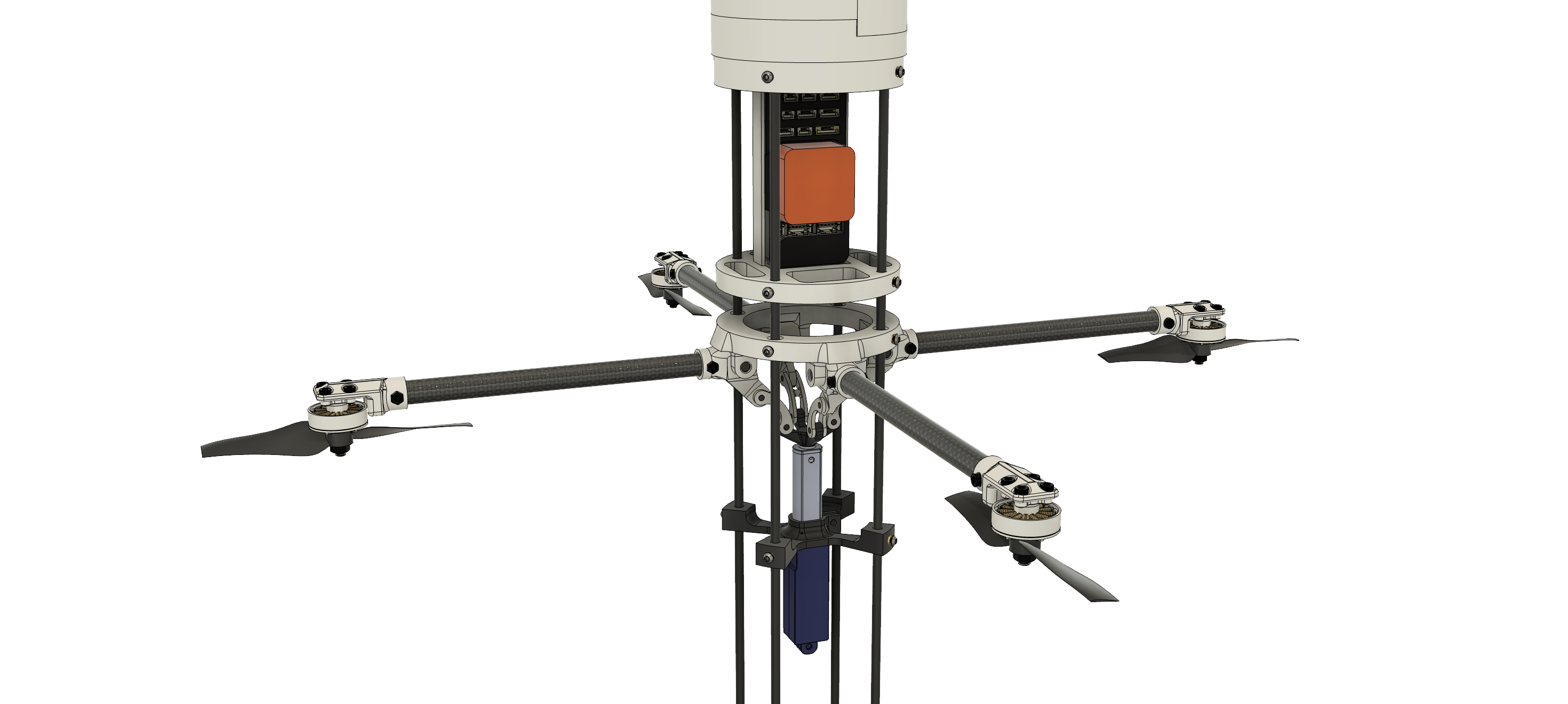

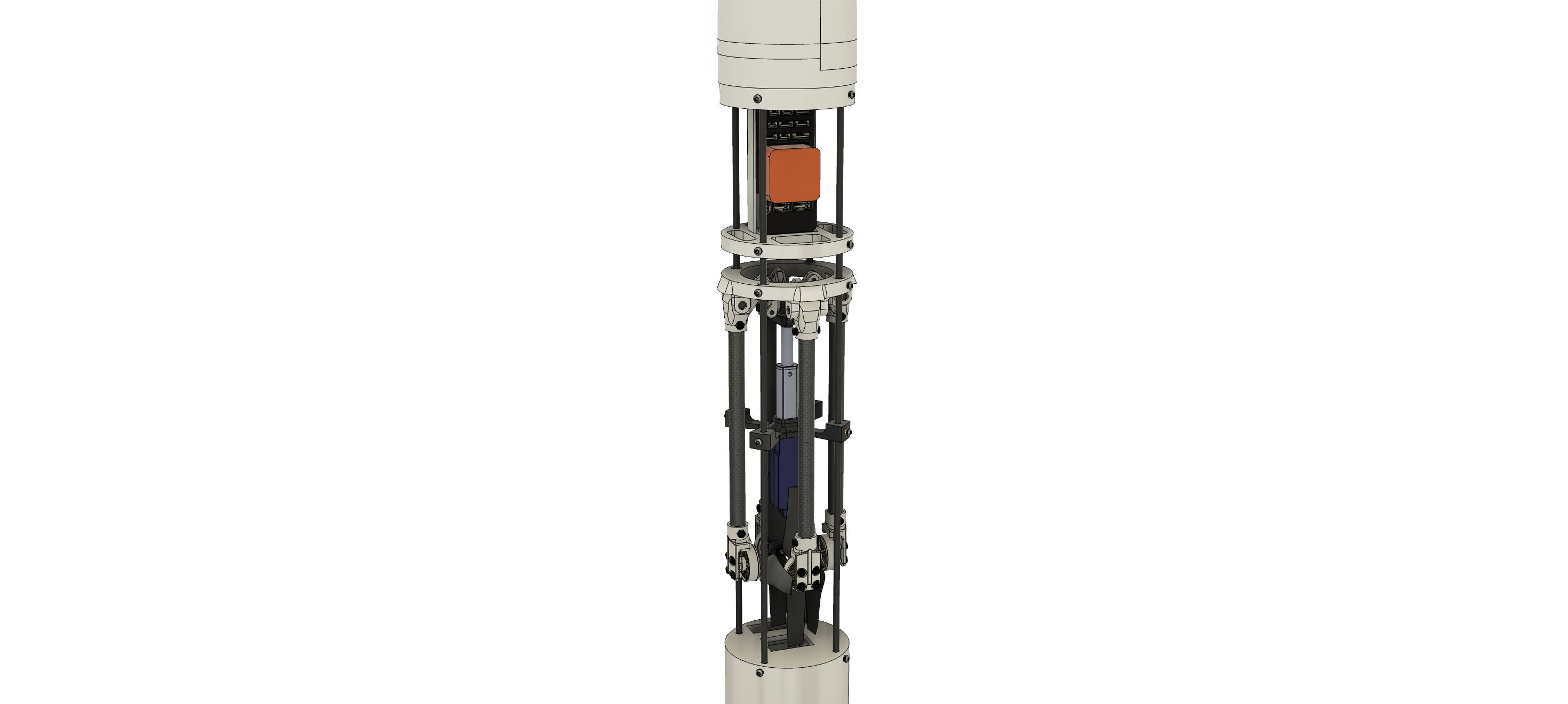

Linear actuator-driven hinge linkage pivots motor arms from inside the rocket body — proven under load, enabling aerodynamic ascent and stable quadcopter deployment.
ArduPilot open-source firmware on Pixhawk 2.4.8. V1.1 upgrades to CubePilot Orange+ for triple-redundant sensors and 400 MHz processing for higher-speed control.

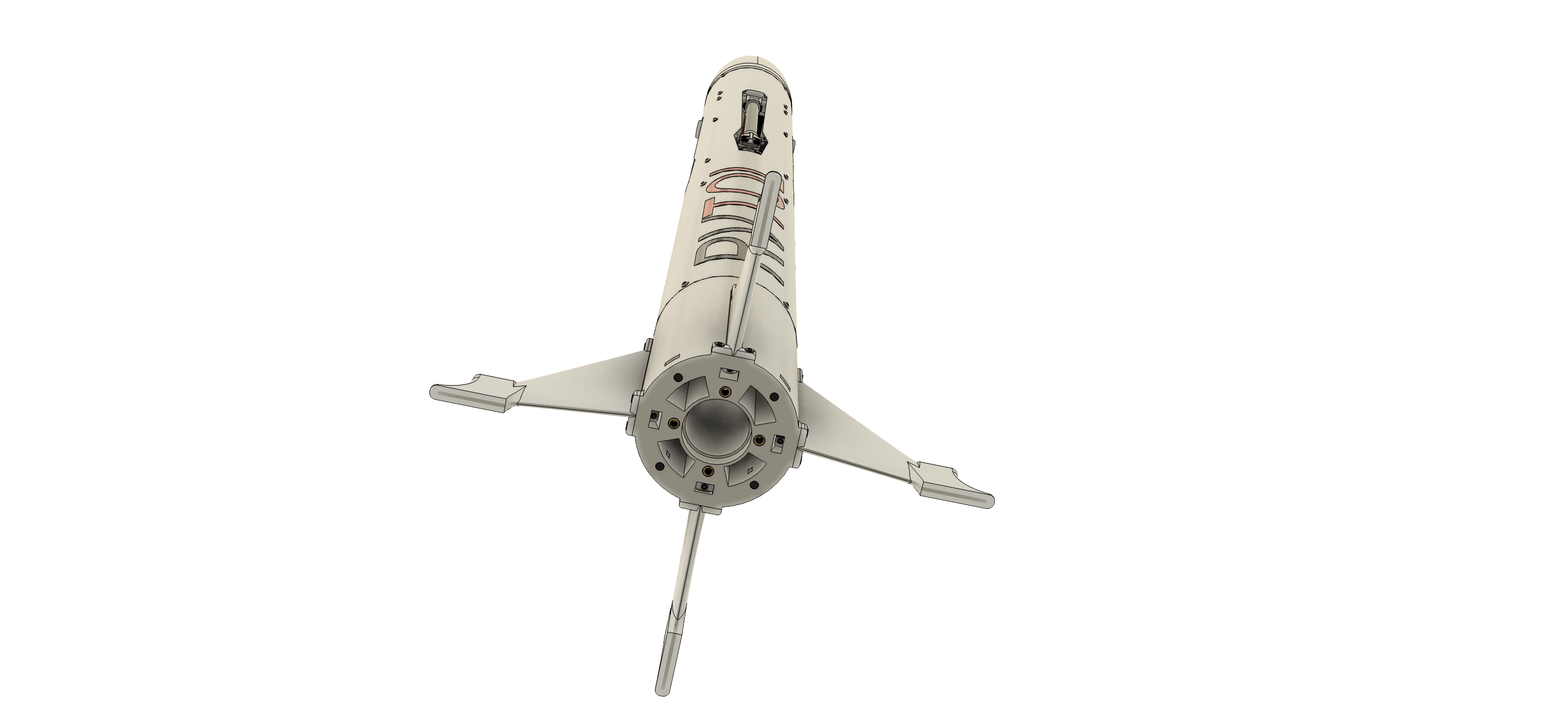

Designed in Fusion 360, manufactured with FDM and SLA 3D printing. V1.1 introduces metal CNC components, ABS/nylon blends, and composite reinforcement for load-bearing joints.
Spring-loaded, servo-actuated parachute provides redundant recovery. Ground-tested and integrated into the rocket body structure.
V1.0: 14.8V 1500mAh Li-ion. V1.1 upgrades to a high-discharge 4S/6S LiPo for improved thrust margin, longer hover time, and reliable peak current delivery.
Long-range telemetry radio in development for real-time mid-flight data acquisition, enabling full ground station monitoring during test launches.
Mission & Impact
"The WHO estimates 10 million people die every year from lack of access to treatments for curable diseases. The technology to reach them exists — the delivery system didn't. Until now."
RVTOL is built for humanitarian logistics — rapid delivery in regions where mountains, flooding, or the absence of roads makes conventional systems fail. No fixed infrastructure. Deployable from virtually any location. Fully reusable.
Inspired by firsthand experience in Nepal, RVTOL specifically targets communities that conventional technology has consistently failed — places where a road doesn't exist and a runway is a luxury.
Unlike expendable rockets or parachute-drop drones, RVTOL lands and is recovered in full — making it viable for repeated operations in the resource-constrained environments where it's needed most.
In time-critical medical scenarios — hemorrhage, snakebite, severe infection — the difference between a 10-minute flight and a 2-hour ground journey is survival. Rocket speed changes the calculus.
RVTOL requires nothing at the destination — no landing pad, no power, no trained operator. A remote village receives a delivery the same way a well-equipped hospital hub would.
The Team
Leads mechanical design, propulsion systems, and systems integration. Combines aerospace fundamentals with cross-disciplinary EECS knowledge to build the full vehicle stack.
Leads structural materials selection, rapid prototyping, and software development. Deep experience in iterative hardware design, composites, and embedded systems.
RVTOL is actively in development. V1.1 is underway — targeting expanded range, metal-reinforced structure, and full autonomous flight. We're building in public.
